FEATURES:
- 32-way adjustable damping allows precise tuning for comfort, track, or aggressive street driving.
- Large 45mm mono-tube design with nitrogen gas separation delivers superior damping response and heat resistance.
- Forged 4130 chromoly steel threaded sleeves ensure extreme durability and smooth height adjustment.
- High-performance NOK oil seals and German-sourced Fuchs shock oil provide consistent damping and extended lifespan.
- Aluminum top mounts and lower perches reduce unsprung weight and improve steering responsiveness.
- Precision sintered metal piston ensures stable valving performance under high pressure and temperature.
- Threaded body allows full ride height adjustment for custom stance and optimized handling geometry.
- Heavy-duty construction with Thai-sourced rubber bushings for balanced comfort and long-term reliability.
Guaranteed Fit
We guarantee that all parts will fit your vehicle perfectly
Up to 2-Year Warranty Protection
30-Day easy return. Lifetime technical support. Learn More>>
Ways To Pay
Description
Vehicle Compatibility
- Pontiac G8 (2008-2009 Sedan)
- Holden Commodore (4th Gen VE 2006-2013) - Sedan/Wagon/Ute
- Holden Calais (4th Gen VE 2006-2013) - Sedan/Wagon/Ute
- Holden Caprice (3rd Gen VM 2006-2013)
- Holden Statesman (3rd Gen VM 2006-2010)

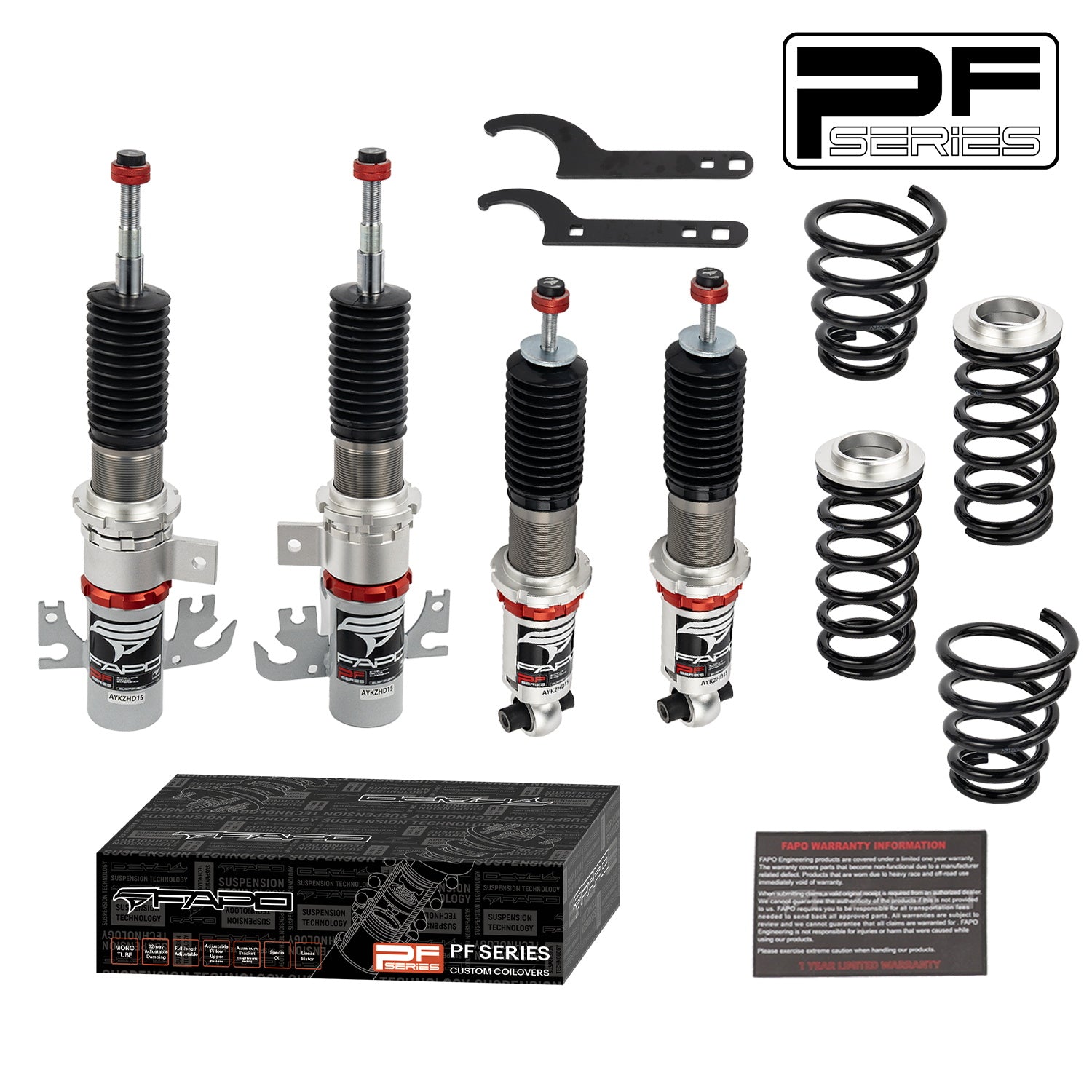

Package Contents

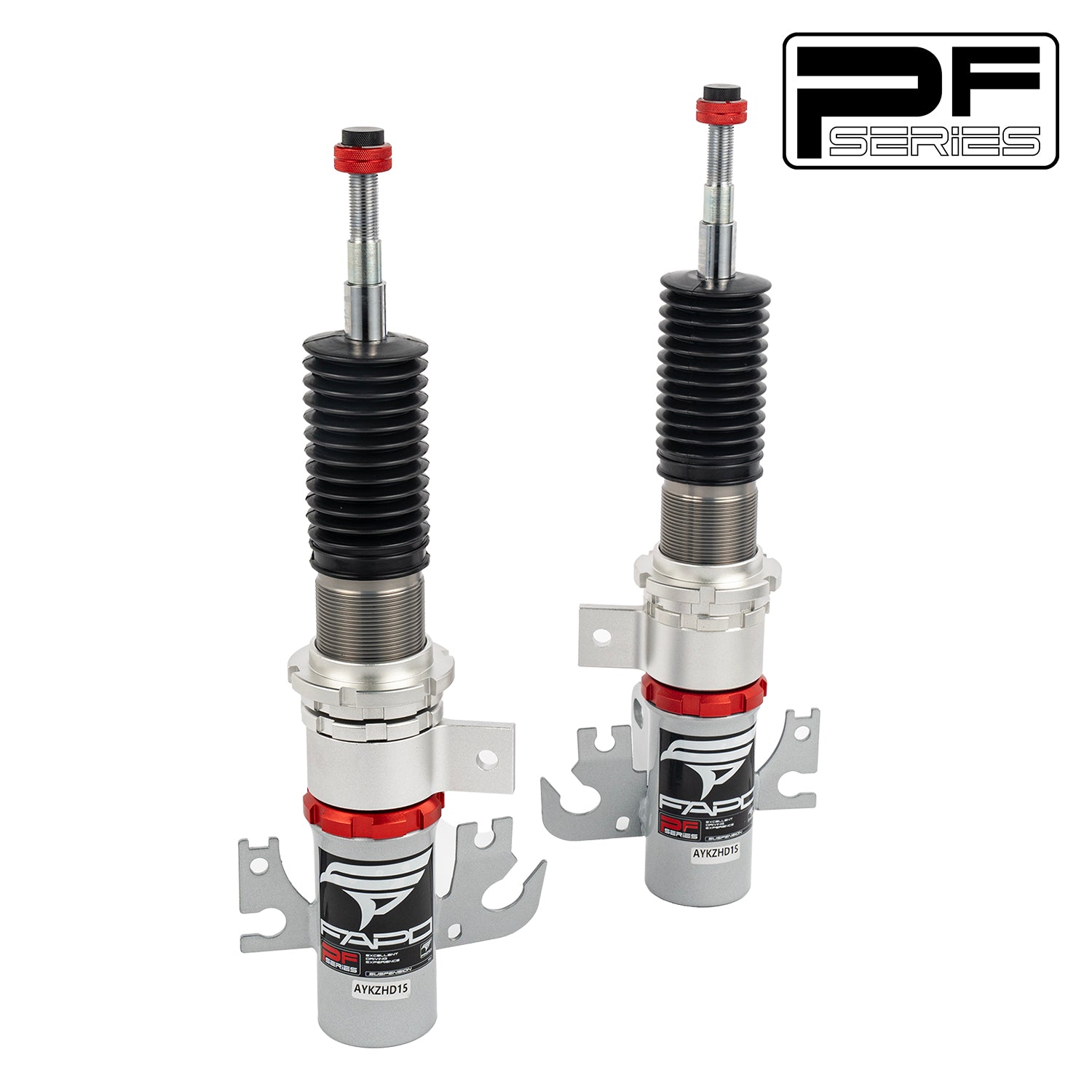

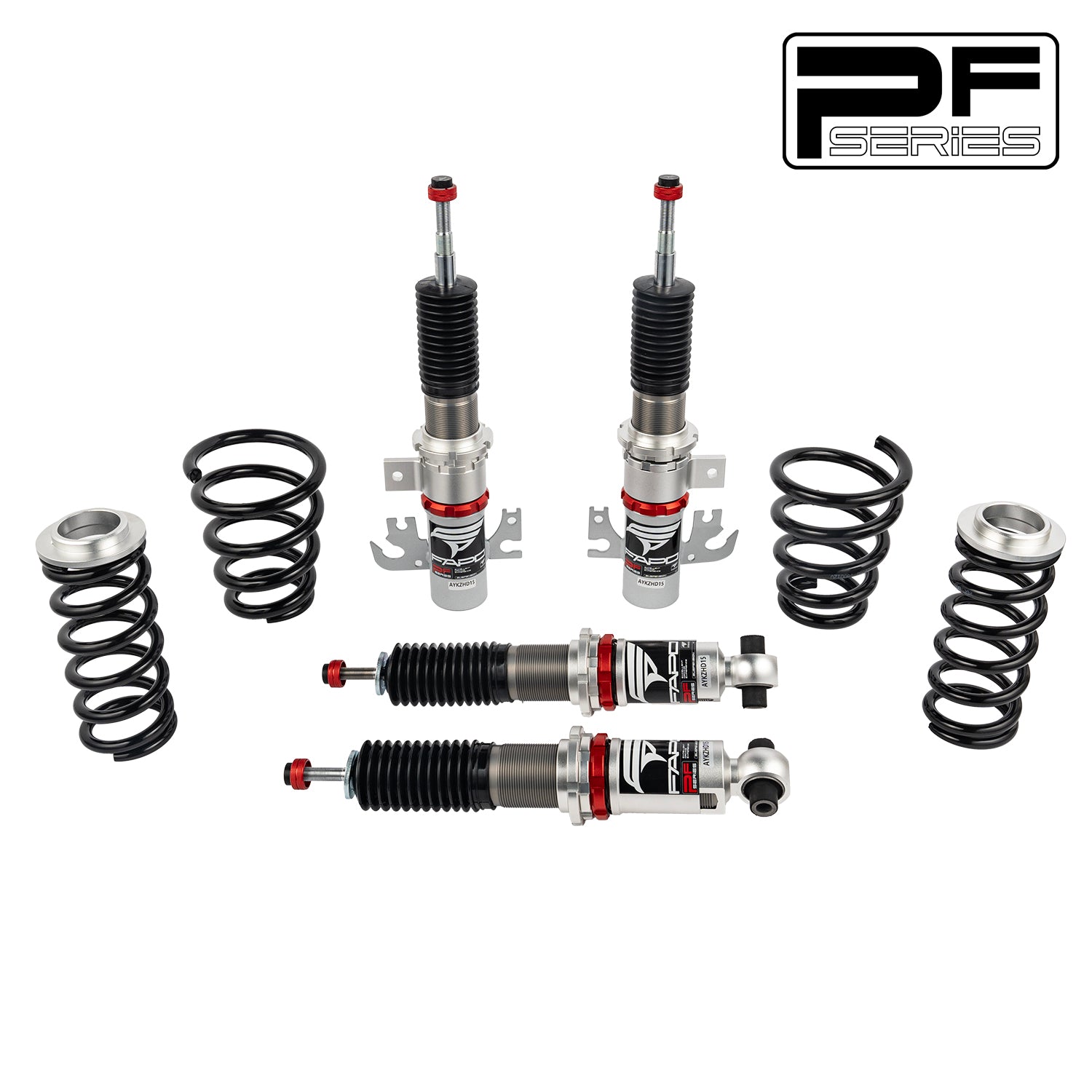

- Front coilovers (2 units)
- Rear coilovers (2 units)
- Adjustment wrenches (2 units)
Important Notice: This coilover system will lower your vehicle 1-1.5" (25-38mm) below factory height even at maximum adjustment setting. Please ensure this lowered stance meets your local regulations and driving requirements before purchase.
Premium Features
- High-performance mono-tube design - 30% greater oil capacity than standard shocks for superior heat dissipation
- Precision height adjustment - Fine-tune your ride height with 1mm increments
- Spring pre-load adjustment - Optimize suspension geometry for your driving style
- Military-grade springs - Tested to 600,000 cycles with less than 0.04% deformation
- Integrated dust protection - Proprietary rubber boots extend damper lifespan
- Performance-tuned valving - Track-ready handling with street-friendly compliance
- Complete installation kit - Includes all necessary hardware for direct bolt-on installation
- Default 1-year warranty for any manufacturing defect, upgrade to 2 years with our Extended Warranty Program.
Technical Specifications
| Front Spring Rate: | 8 kg/mm (446 lbs/in) |
| Rear Spring Rate: | 10 kg/mm (557 lbs/in) |
| Height Adjustment Range: | 25-50mm (1-2") from base setting |
| Camber Adjustment: | Front: 1.5" (included) Rear: Requires aftermarket arms |
| Damping Adjustment: | 32-click rebound adjustment |
Compatibility
| Year | Make | Model |
|---|---|---|
| 2008-2009 | Pontiac | G8 (Sedan) |
| 2006-2013 | Holden | Commodore 4th Gen VE (Sedan/Wagon/Ute) |
| 2006-2013 | Holden | Calais 4th Gen VE (Sedan/Wagon/Ute) |
| 2006-2013 | Holden | Caprice 3rd Gen VM |
| 2006-2010 | Holden | Statesman 3rd Gen VM |
Specs
Brand
FAPO
Cylinder Length
10.24"(F)/ 7.88"(R)
Travel Length
4.7"(F)/ 3.7"(R)
Spring Rate
447 lb/in(F)/ 671 lb/in(R)
Spring Length
7.87"(F)/ 7.09"(R)
Tube Diameter
2.09"(F)/ 2.09"(R)
Shock Rod Diameter
0.79"(F)/ 0.49"(R)
Valve
4-M2-3(F)/ 4-A1-9(R)
Rod End Thread
M14(F)/ M12(R)
Top Mounts
OEM top mounts required (F)/ OEM top mounts required (R)
Damping Level
32 Levels
Warranty
1 Year
